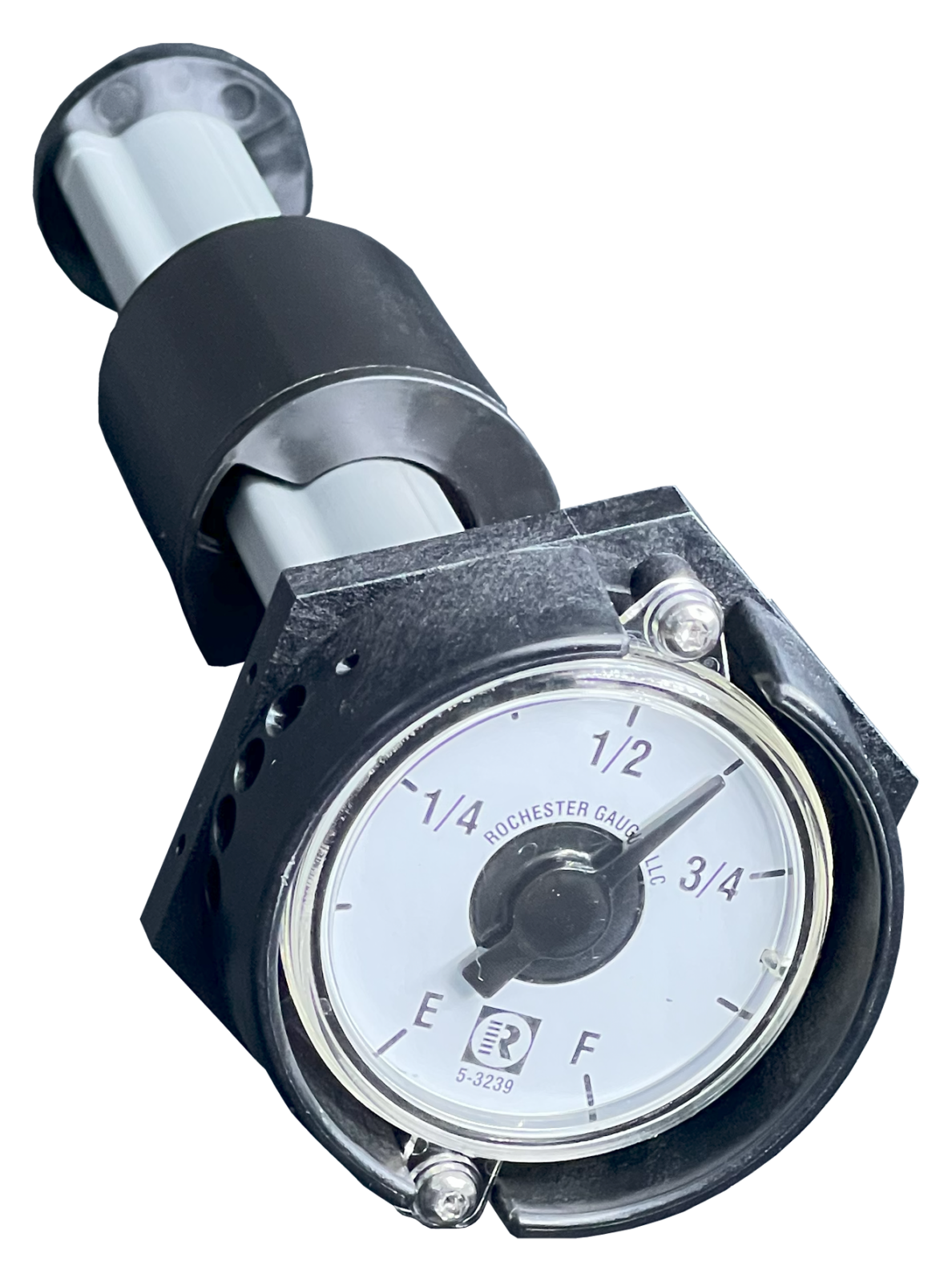

Vertical spiral contents gauges – G/LL63

A mechanically operated liquid level gauge built using high precision moulded components and a one piece float guide arrangement.
The gauge is mounted vertically from the top of the tank so that as the liquid level changes the float follows that change and uses a magnetic coupling to transfer that motion from the float to the level indicator dial.
The gauge is completely sealed so there is no risk of the tank contents leaking through the gauge header.

Technical Data
