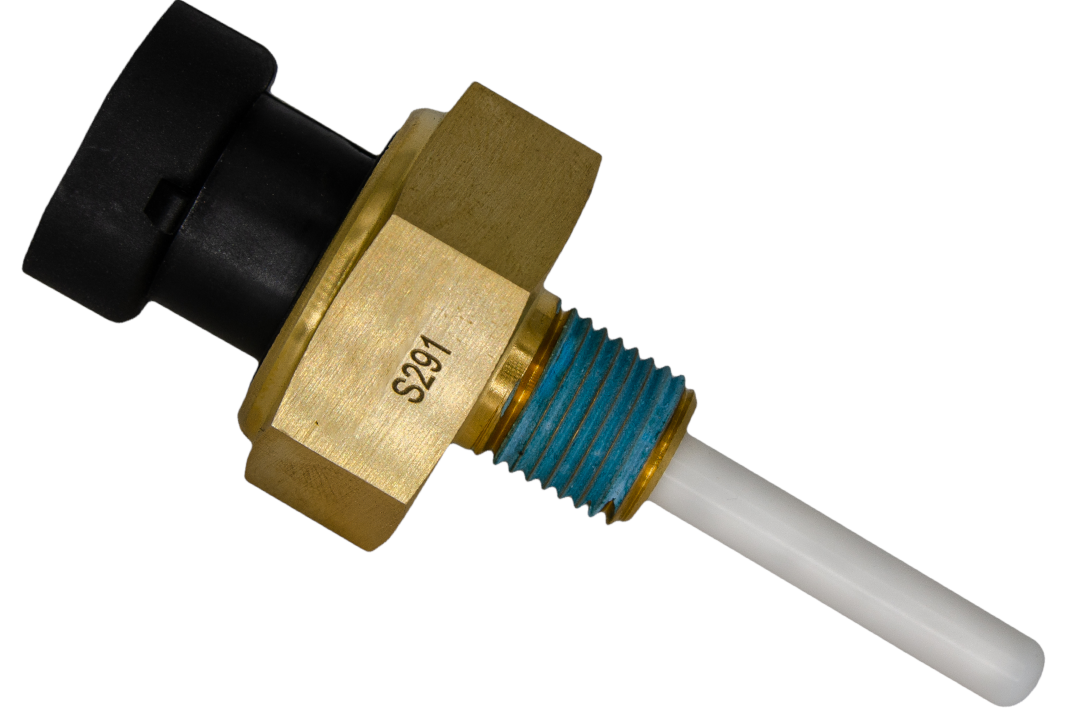

S291 Capacitance Type Coolant Level Switch with Complimentary (Flip/Flop) Voltage Output

The S291 is an active device designed to give an alarm signal if liquid falls below, or rises above, a preset level. It can be specified with a delay to eliminate false alarms due to turbulence.
Containing a factory programmable microprocessor, the switch provides a complimentary (flip/flop) voltage output on two pins.
Its small footprint with limited intrusion into the tank means a reduced risk of damage and a wide range of customer specifiable options make it suitable for most applications.

Description

The S291 is a horizontally mounted switch for sensing water/coolant levels. Fitted with a Packard connector all models have an inbuilt time delay to reduce the risk of intermittent switching through liquid turbulence and a wide selection of switching outputs.

Technical Data

Technical Data

Technical Data Sheet

Troubleshooting Guide

Troubleshooting Guide

S291 Troubleshooting Guide
