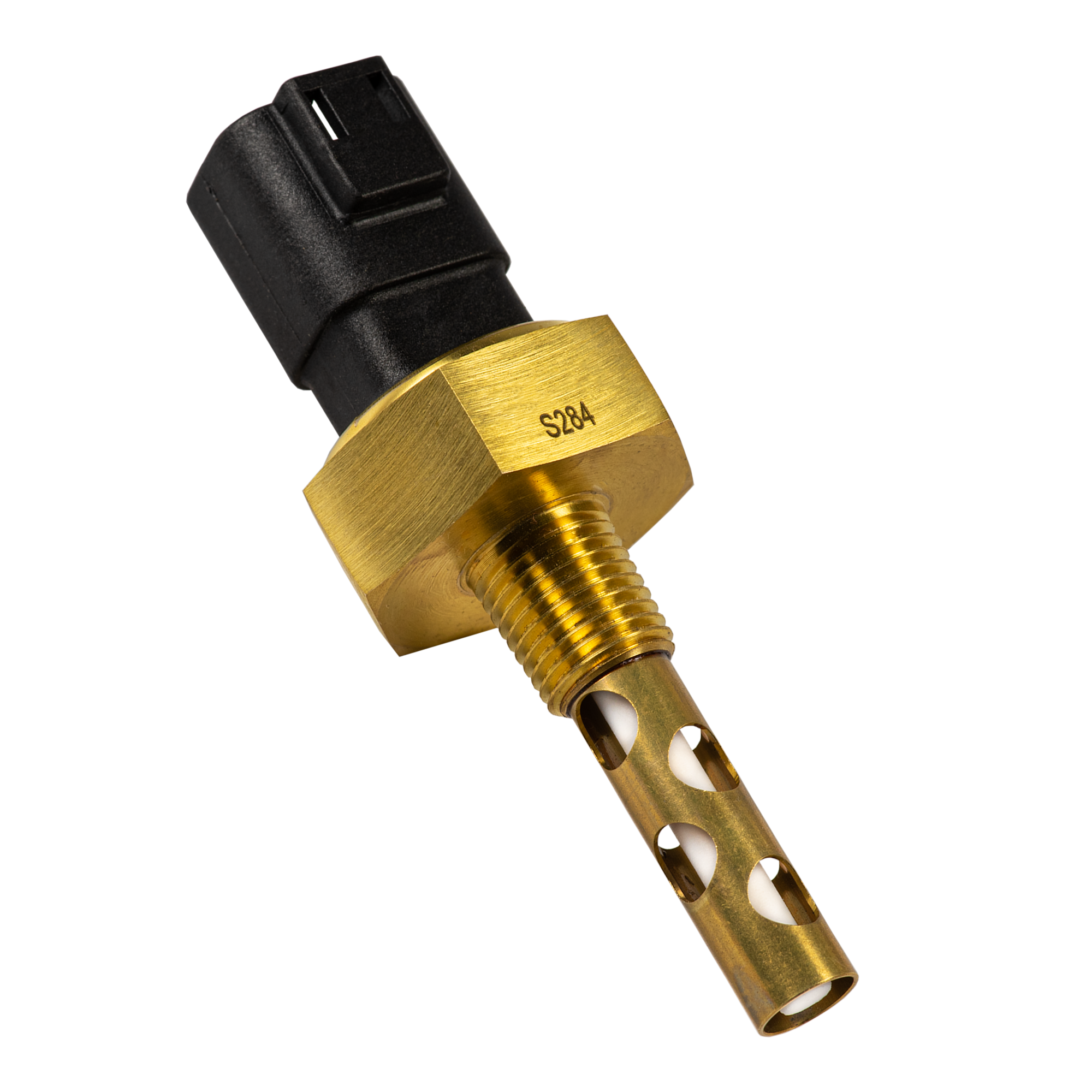

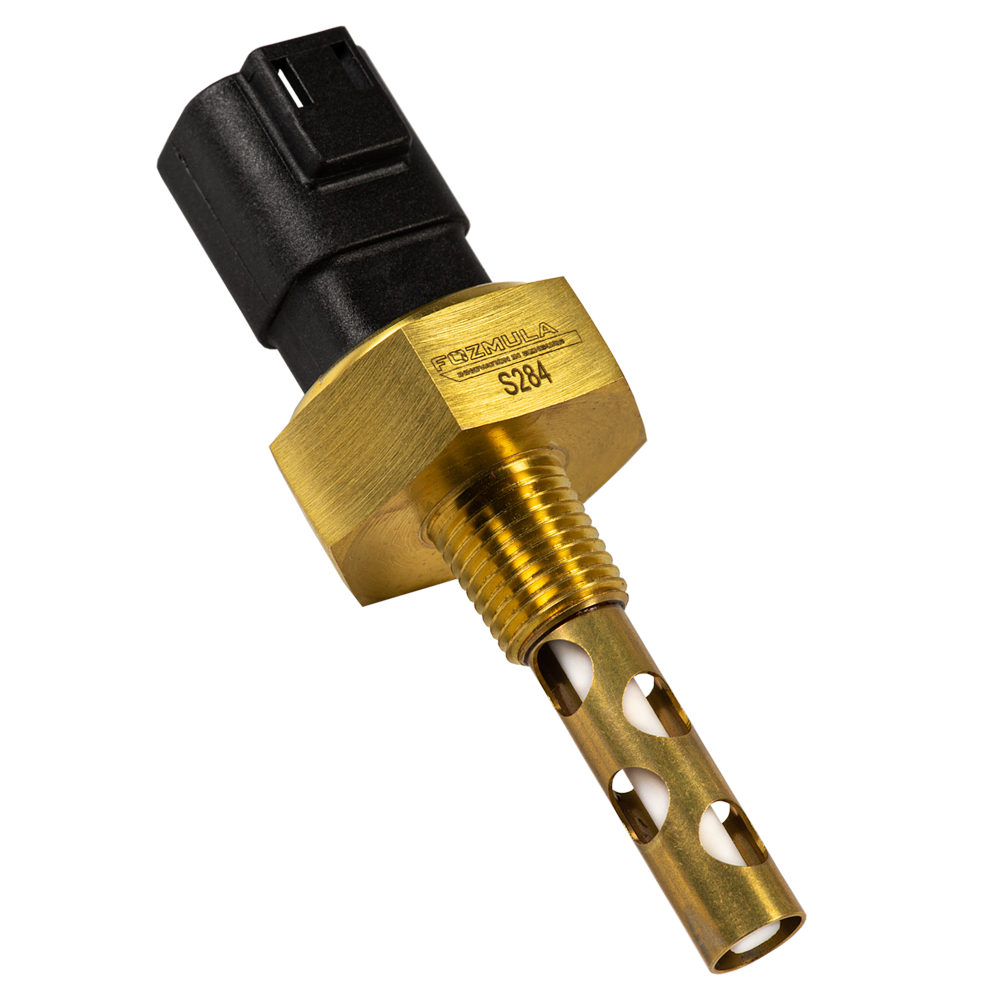

S284 Capacitance Type Oil Level Switch with Deutsch connector

The S284 is an active device designed to give an alarm signal if liquid falls below, or rises above, a preset level. It can be specified with a delay to eliminate false alarms due to turbulence.
Containing a factory programmable microprocessor, the switch offers sink to ground or source voltage output. Its small footprint with limited intrusion into the tank means a reduced risk of damage and a wide range of customer specifiable options make it suitable for most applications.


The S284 is a horizontally mounted capacitance switch for sensing oil levels. Fitted with a 4 way Deutsch connector, all models have a factory programmable time delay to reduce the risk of intermittent switching through liquid turbulence and a wide selection of switching outputs.

Designed for use in mineral oils, typically used in engines or hydraulic actuators, compatible with brass, PTFE and FVMQ.

Technical Data

Technical Data

Technical Data Sheet
